Home » Products » Valves for Dish washers and washing machine » Inlet solenoid valve for whirlpool washing machine

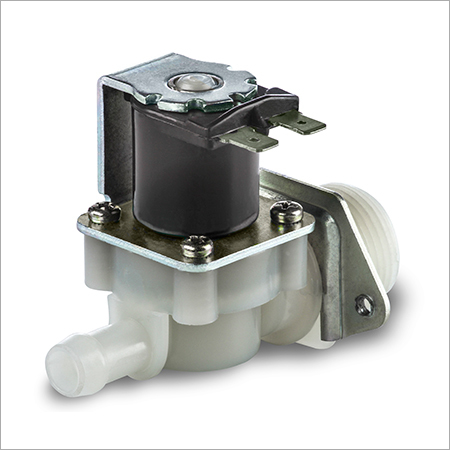

Inlet solenoid valve for whirlpool washing machine

Inlet solenoid valve for whirlpool washing machine
Inlet solenoid valve for whirlpool washing machine
Send Inquiry
Product Code : 19
Product Description

Inlet for feed valves for domestic dish washers and washing machines – We are counted as one of the leading and veteran manufacturers of water valves that are used as essential parts of home apparatus. The models that we provide for dish washers, washing machines, various white appliances and ice makers are include:

  1. The G1/90 model of angled valve possesses options of three outlets like 12.5 mm and 10.5 mm hose barb and ¼’’ BSPM from which clients can select as per their preferences. We suggest to order for steel made mounting bracket separately.

Specifications

  • Outlet: 12.5 mm, 10.5 mm, ¼’’ BSPM

  • Inlet : 3/4’’ BSPM

  • Mounting: Mounting bracket is provided as optional accessory

  • Food contact: on request

  • Flow rate: 2.5/1.5/5/30/10 LPM

  • Inlet filter: the 0.45 mm inlet filter is made of polyacetal material

  • Available valve type: Normally open (0.2 to 4 bar), magnetically latching (0.2 to 4 bar), normally closed (0.2 to 8 bar) and low pressure (1000 mm WC).

  1. The G1/180 model of straight valve is available with 3 outlet options that include 12.5mm, 10.5 mm hose barb and ¼” BSP. Customers can order for steel mounting bracket separately.

Specifications:

  • Outlet: 12.5mm, 10.5 mm, ¼’’ BSPM

  • Inlet : 3/4’’ BSPM

  • Mounting: Mounting bracket is provided as optional accessory

  • Food contact: on request

  • Flow rate: 2.5/1.5/5/30/10 LPM

  • Inlet filter: the 0.45 mm inlet filter is made of polyacetal material

  • Available valve type: Normally open (0.2 to 4 bar), magnetically latching (0.2 to 4 bar), normally closed (0.2 to 8 bar) and low pressure (1000 mm WC).



  1. The G1/90BB model of angled valve contains options of three outlets that include 12.5mm, 10.5 mm hose barb and ¼” BSP. It is equipped with compact shaped mounting bracket.

Specifications:

  • Outlet: 12.5mm, 10.5 mm, ¼’’ BSPM

  • Inlet : 3/4’’ BSPM

  • Mounting: Mounting bracket is provided as optional accessory

  • Food contact: on request

  • Flow rate: 2.5/1.5/5/30/10 LPM

  • Inlet filter: the 0.45 mm inlet filter is made of polyacetal material

  • Available valve type: Normally open (0.2 to 4 bar), magnetically latching (0.2 to 4 bar), normally closed (0.2 to 8 bar) and low pressure (1000 mm WC).
